Self tapping screw sizes



Self tapping screw sizes

Every time the customer asks about the size of the regular or standard self-tapping screws, we have to go through the information and then give it to the customer. In order to give customers more convenience, Shenzhen Shi shi tong has compiled several common Japanese standard JIS self tapping screw sizes.

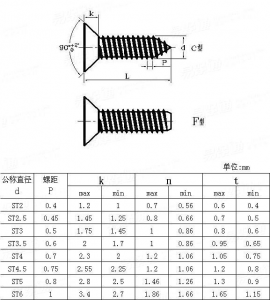

JISB1115-2006 slotted countersunk head self tapping screw sizes:

Self tapping screw sizes

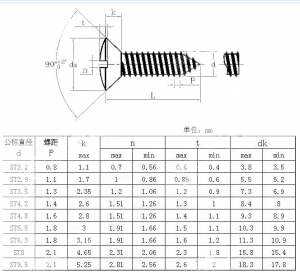

JIS B 1115-1995 countersunk head cross slot self tapping screw sizes

Self tapping screw sizes

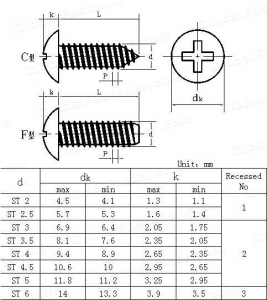

JIS B 1122-1996 truss head cross recessed tapping screws

self tapping screw sizes

JIS B 1122-1996C Cross groove spherical cylindrical head self tapping screw

self tapping screw sizes

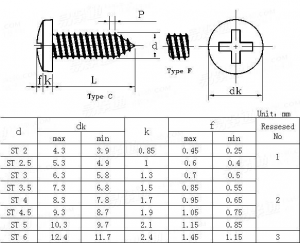

JIS B 1122-1996 Cross recessed pan head tapping screws

self tapping screw sizes

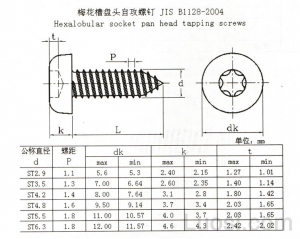

JIS B 1128-2004 Pan head plum blossom tapping screw size

self tapping screw sizes

The above several types of self tapping screw sizes are what we often use. Shenzhen Shi shi tong screw manufacturers can produce standard and non-standard screws, which can produce screws below M10. The materials are optional, the surface treatment is optional, the head type is optional, the groove type is optional, etc., which are customized according to your requirements. Shenzhen Shishitong screw manufacturers serve batch customers and can customize screws according to your requirements. annie.li@szsst88.com
